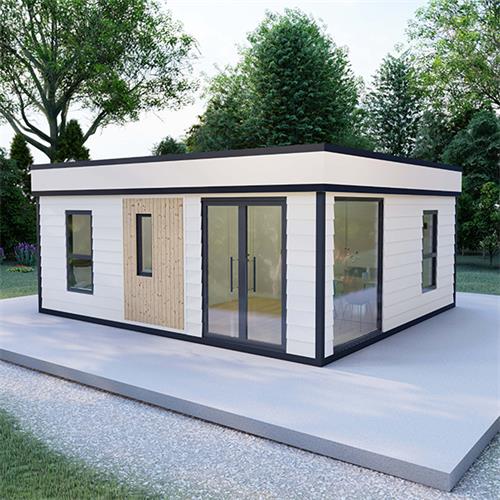

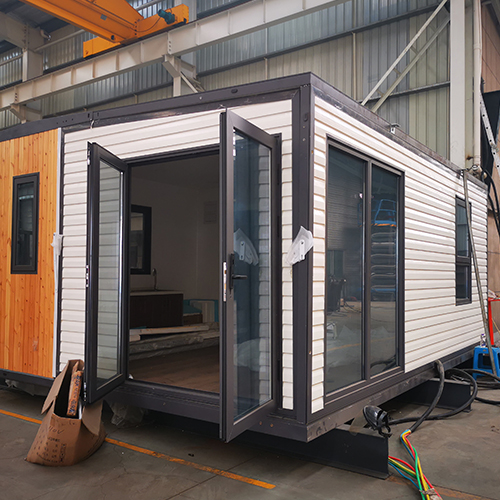

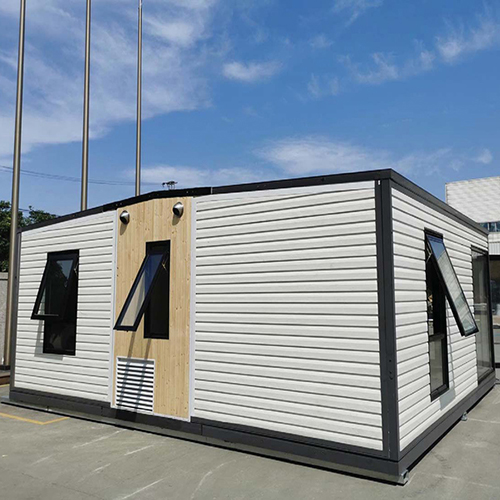

Smart Container House is the luxury version of the Expandable Container House, it can be expanded also, but we made it in different layout, with different structure system, different wall and roof system, also with better outside and inside finishing.
We use high strength aluminum frame with PU foam to make the roof and wall panels in order to achieve better insulation and good strength but in lighter weight pieces. The PU foaming system is solid, with well finished plaster board on both sides for walls which requires no more treatment after been finished. The water pipes, electrical conduits and wires are also pre-installed and ready to use after been connected.
All doors, windows, sanitary, lights, flooring and ceiling are well installed, client just need to open the package and fix some connections, the smart container house is ready to move in.

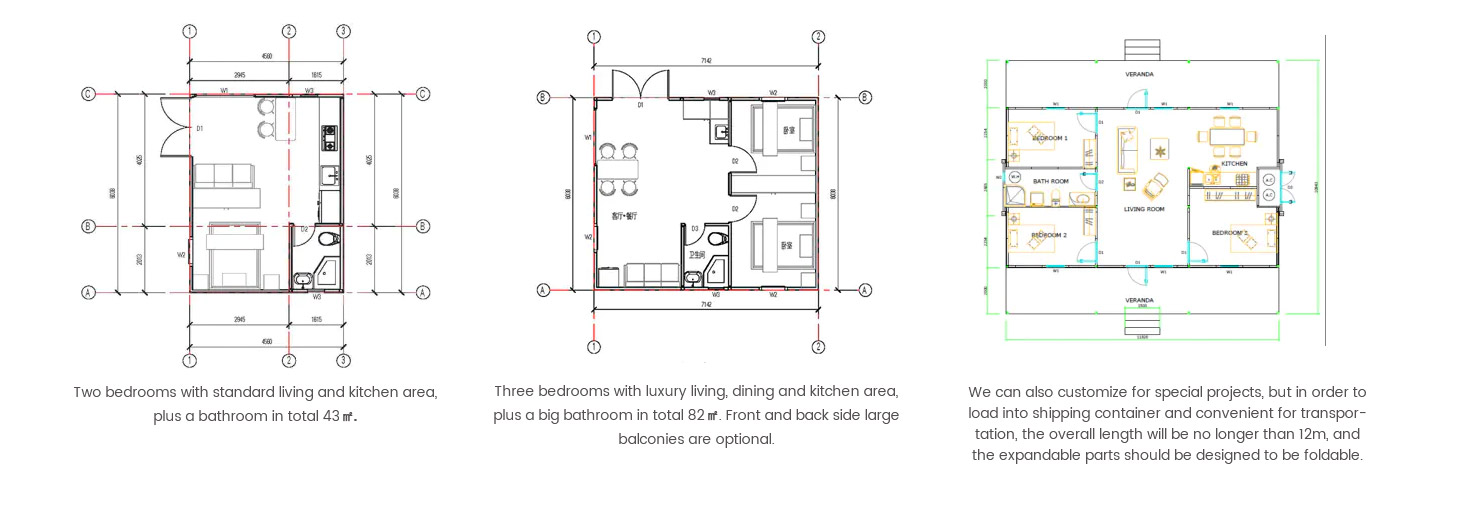

We have three basic designs from one bedroom to three bedrooms:
One bedroom with small living and kitchen area, plus a bathroom in total 27㎡.

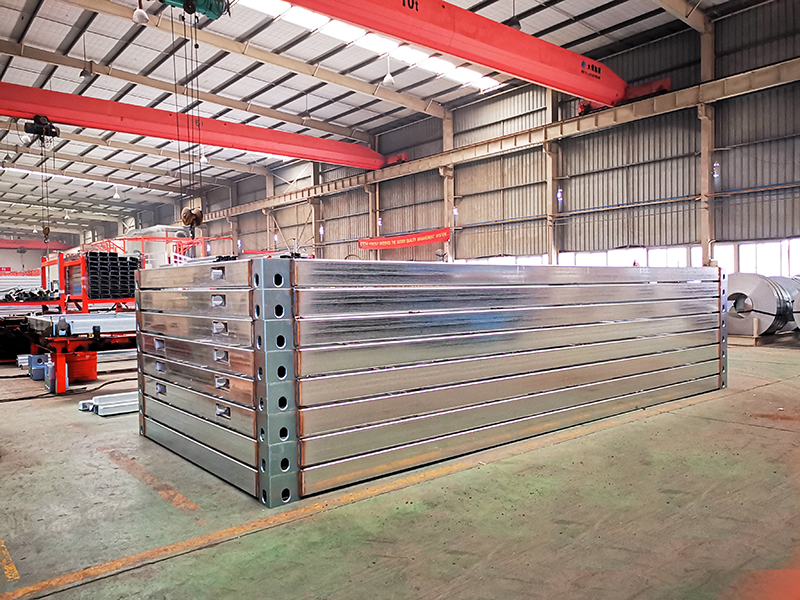

Made by full-welded oil-free galvanized RHS, Q355 low-carbon steel cold formed sections with painting finishing

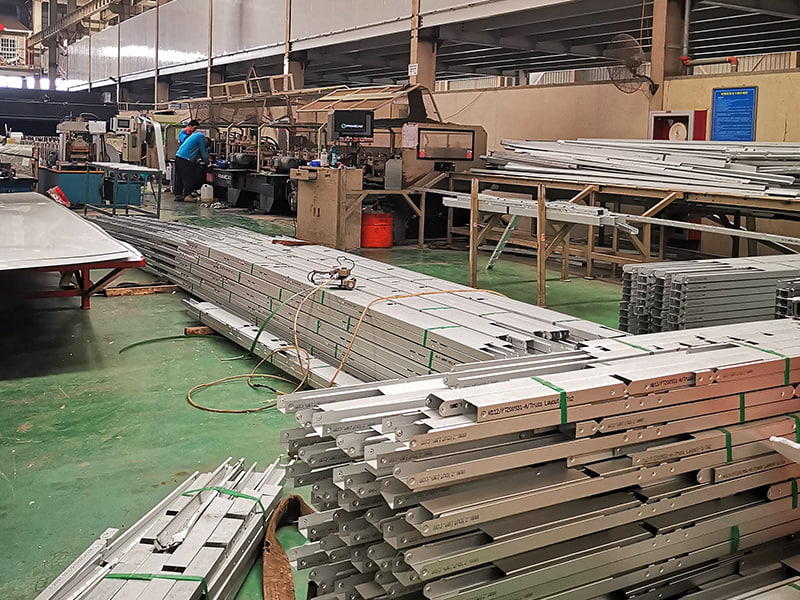

the wall frame is made by 6063 reinforced aluminum alloy profiles.
6063 reinforced aluminum alloy custom made hinge body and Q355 steel hinge base

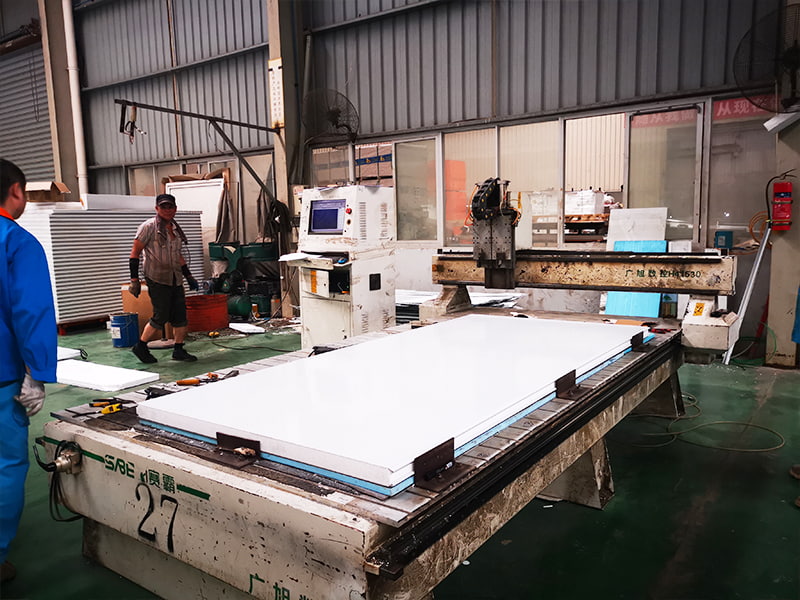

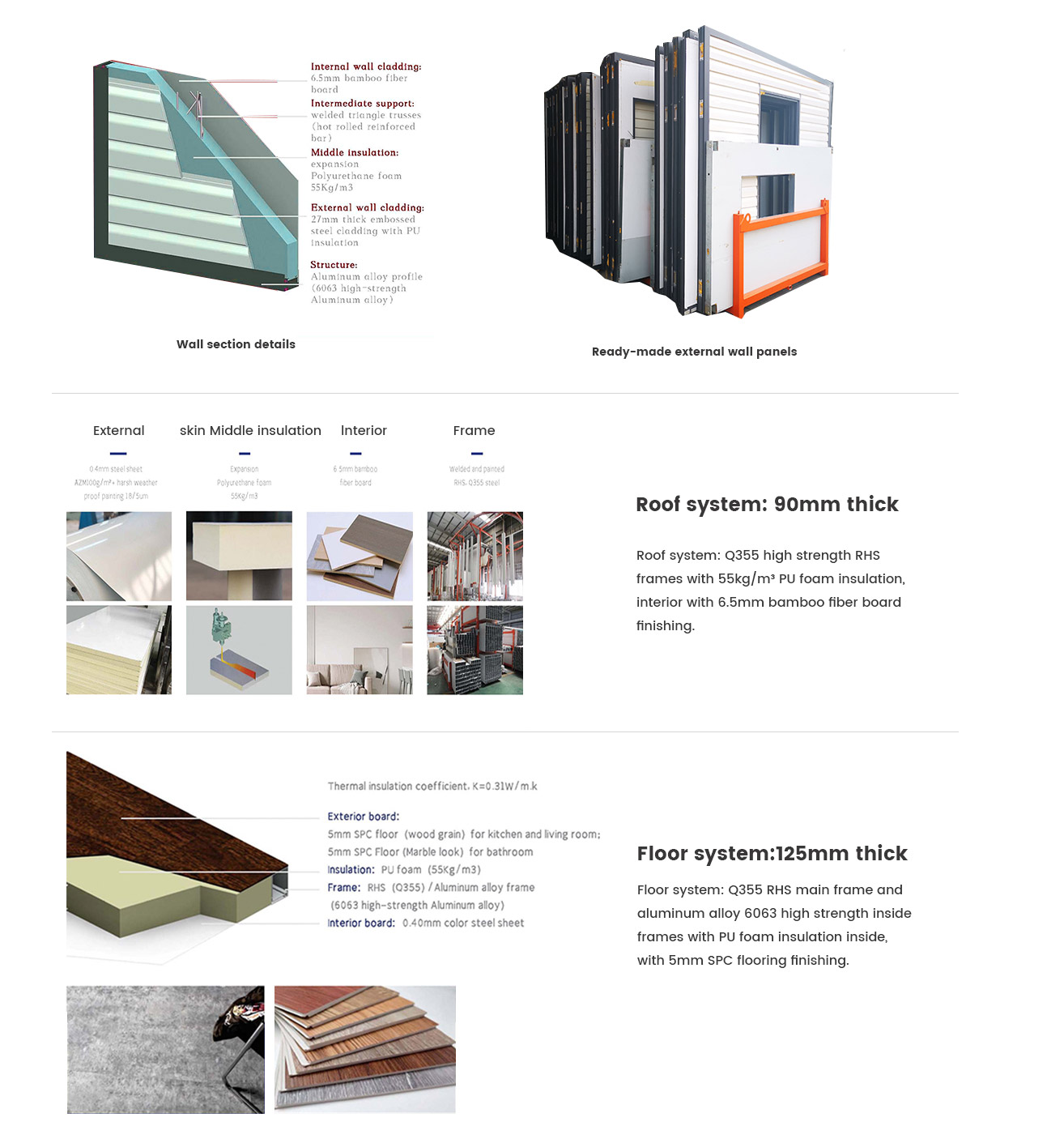

prefabricated wall panel, well finished by 6.5mm bamboo fiber internal wall cladding, hot rolled reinforced triangle trusses inside to bear the loading, expansion polyurethane foam in 55kg/m³ for wall insulation, 27mm embossed steel cladding with PU insulation as external wall finishing add extra insulation, the main outer frame of the wall will be aluminum alloy profile.
Bathroom and kitchen finishing: high standard wash basin, toilet, shower room, mirror, water heater, kitchen units are well pre-installed and fixed, safe during transportation and ready to use, electrical and plumbing systems are also embedded and well finished, no more installation work onsite except to connect them.
It will be a better option for low-cost living or office space. They can be also located at backyard...
It’s better than tent camps because there are individual living rooms, bathroom and simple kitchen, ...
Simple designs can satisfy for basic living, also with good insulation and strong structure which ca...
The Smart Container House can be folded during transportation, which makes it cost saving. We can fold the two side parts into the main center part, make it a 20ft or 40ft SOC box, put other components inside the SOC box then load into shipping container. In this way, each SOC box is one unit of smart house, so you can find all components easily onsite. Or if any delay of the project, you can also put the SOC box in warehouse or in the site, there will be no mess up or damage, no accessory will get lost either.

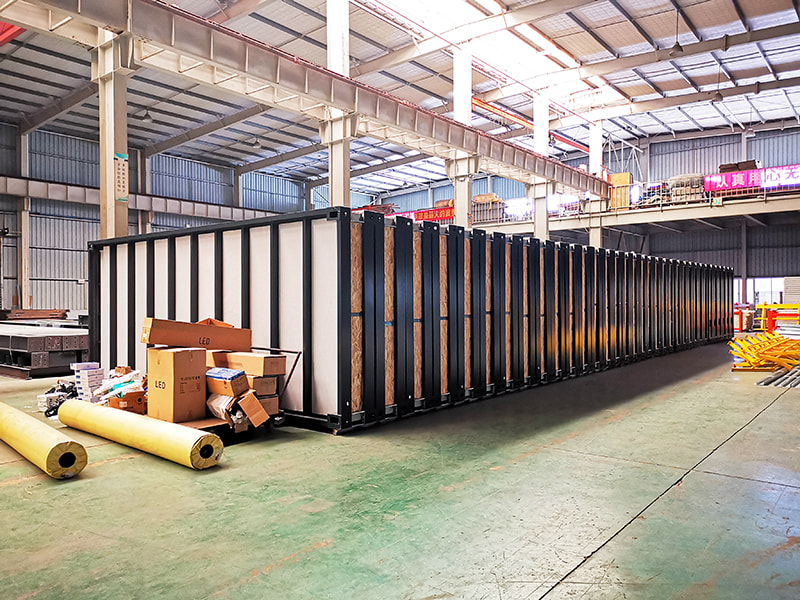

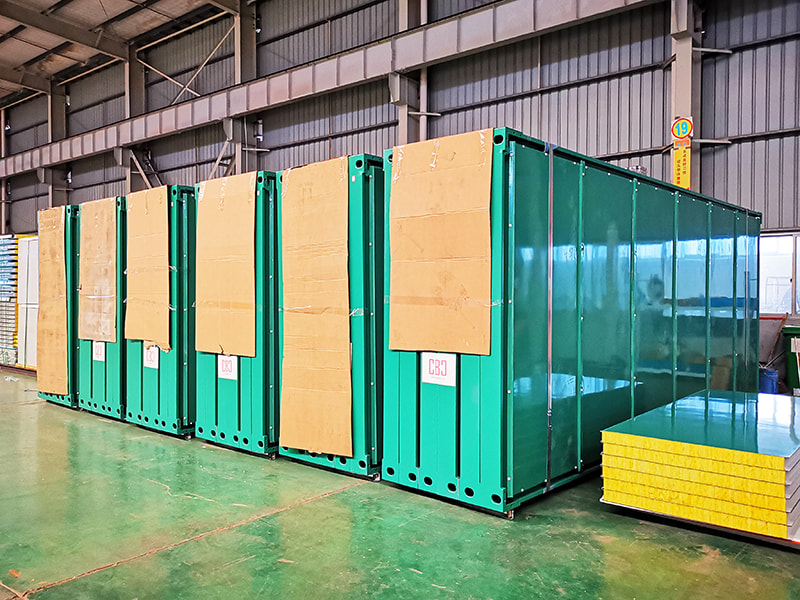

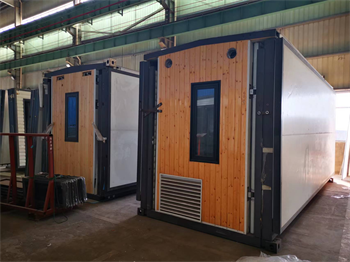

Smart house folded in factory, ready for transportation. We will use special water-proof cover to protect the package.
|Project Name||Smart Expandable House|
|Finished Time||Year 2022|
|Building Area||36 units|

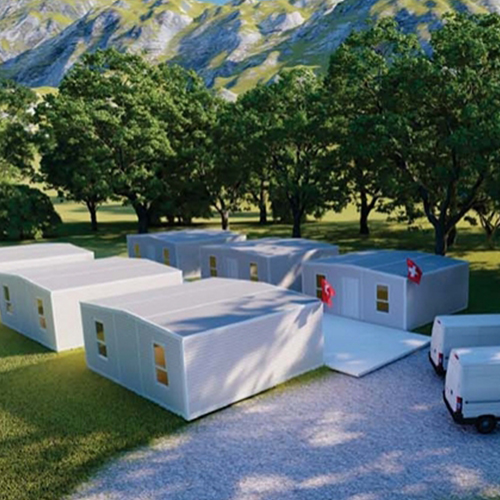

|Project Description||Custom made smart expandable prefab house with luxury decoration for mining accommodation camp in AU, one bedroom and two bedrooms designs both with bathroom, kitchen and living area.|

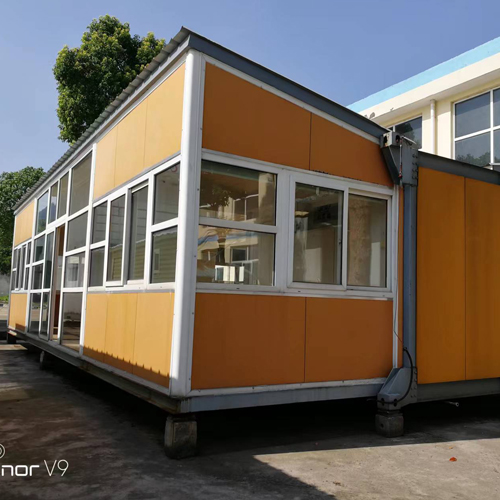

|Project Name||Luxury Expandable Prefab House|
|Finished Time||Year 2016|
|Building Area||5 units|
|Project Description||Two bedrooms design with bathroom and kitchen for vocation house, luxury decoration and modern design.|
|Project Name||Smart Living House|
|Finished Time||Year 2021|
|Building Area||16 units|
|Project Description||Smart living house, full finished in factory, easy to be transported and re-located. All prefabricated in CBC workshop with finished well and roof, embedded plumbing and electric system, big alu. Framed door and window, extra PU foamed wall and roof for better insulation|
CBC’s design and research activity applies BIM system and Autodesk Revit software. As China Wholesale Smart Container House Suppliers and Smart Container House Manufacturers.Based on relevant information and requirements of the project, we establish a building model to simulate the real information about the building through digital information simulation. what’s more, we can easily present details and 3D renderings of our company’s products to all clients.
In Year 2007, we created a unique flatpack roof system Using injected PU foam as core material, which solved the problem of the balance between the tightness, the strength and the full prefabrication in the factory.
We are also the first one to use FrameCAD system to design and manufacture the light gauge steel villa in China.

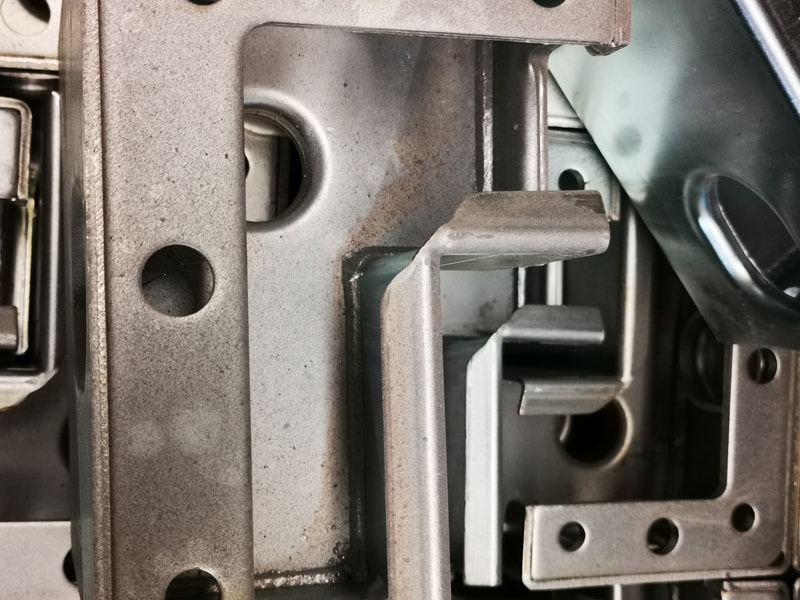

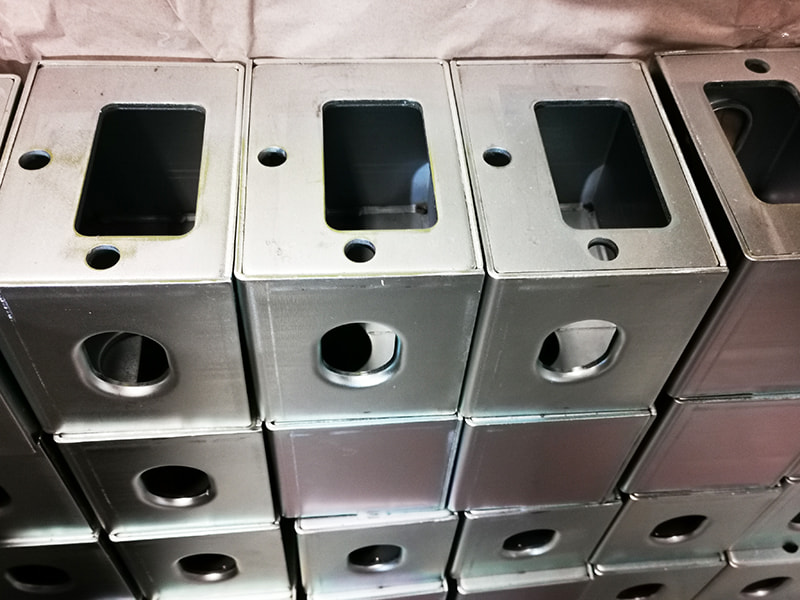

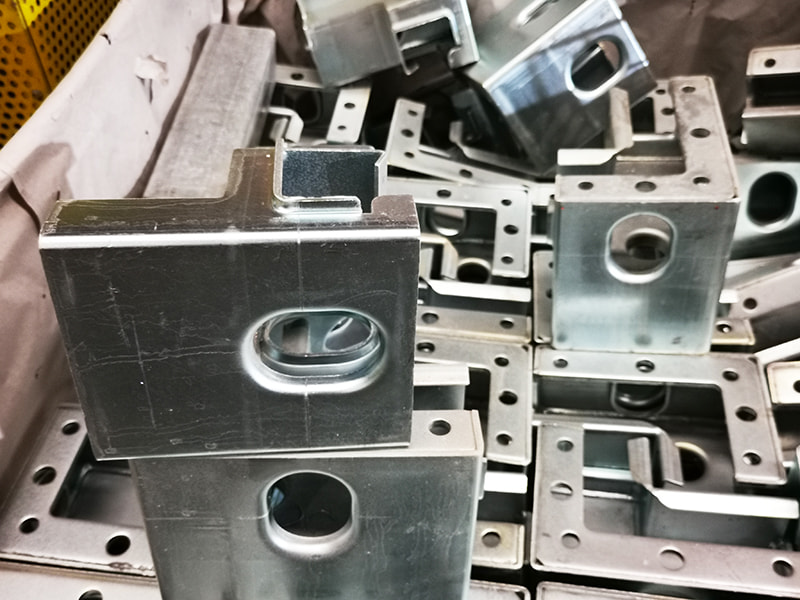

We have more than 100 patents for different parts or technology innovations, such as the wall panel clips, the skirting, the corner parts…
Feel free to contact us if you have questions or wish to get a free quote on yourdream house.Please fill out the contact form below or email [email protected].
