Expandable Container House

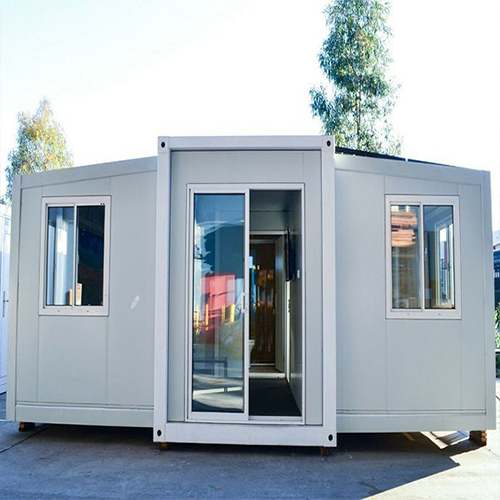

Expandable is based on flatpack but can be extended the building area from both sides. The main part of an expandable is a 20ft or 40ft flatpack, but with folded roof, wall and base on both sides when packed. When arrives in the site, two sides can be open and connected, so extra space on both sides will be made. A 20ft flatpack container house has only around 14sqm building area, but a 20ft expandable has around 36sqm.

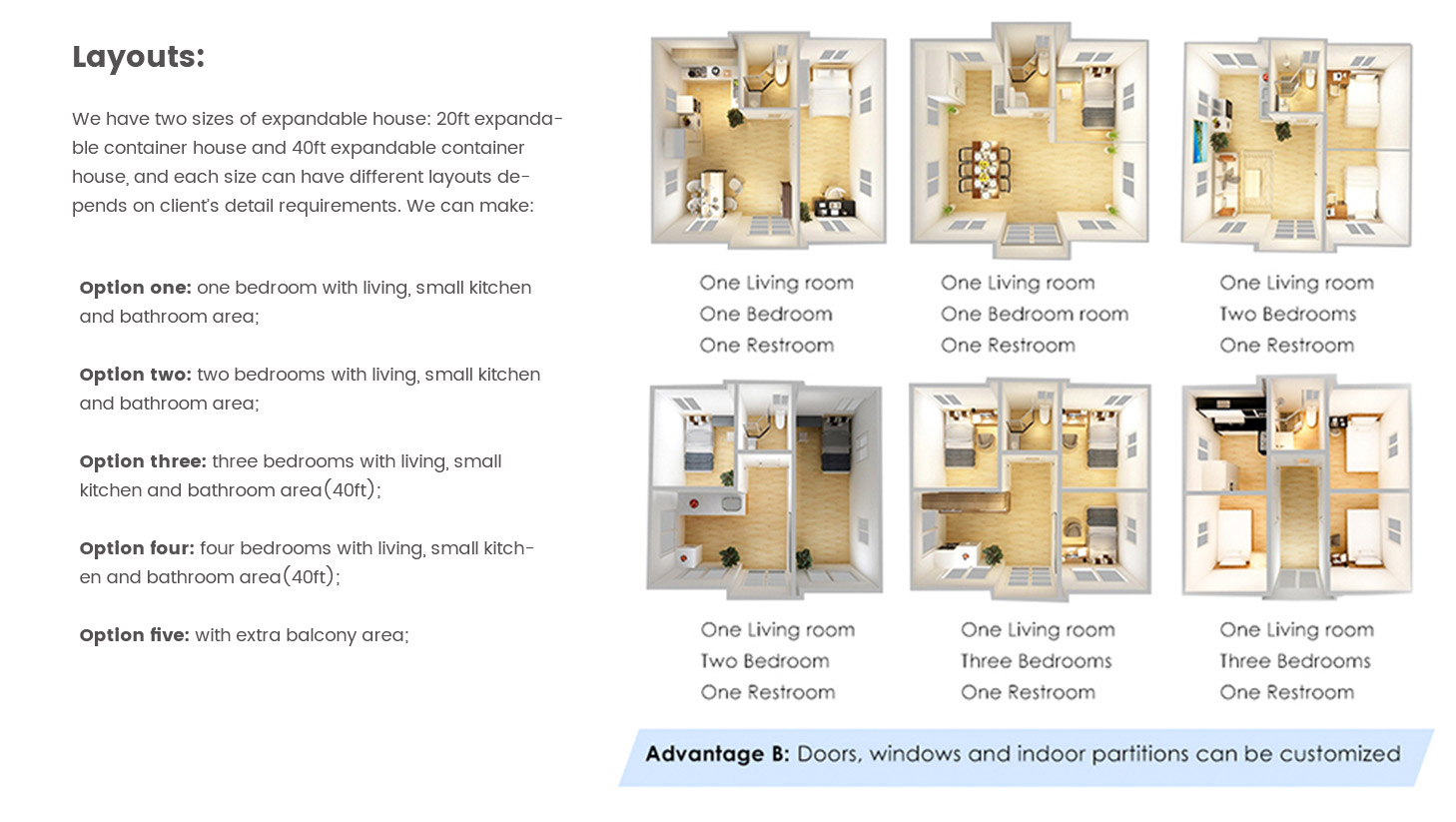

But expandable cannot be stacked or even difficult to be combined, it normally used as a single house with two to four bedrooms plus bathroom and living area.

The Expandable Container House is full prefabricated in workshop, all structure well connected, wall and roof panels are well installed, doors and windows are pre-set in the wall panels, plumbing and electricals are embedded and ready to use, floor and ceiling are finished, only need to fix some connections, flashings and shirting onsite.

Contact

Specifications

20ft dimensions	Expanded Size: 640058502530 mm; Folded Size: 585022002530 mm
40ft dimensions	Expanded Size: 6400118002530 mm; Folded Size: 1180022502530 mm
Steel Frame	Cold rolled Q345B steel frames, galvanized and painted, roof /floor frame beams are in 2.5~3.0 mm thickness.
Color Choices	White, Red, Black, Grey or any other RAL color
Wall and Roof panel	50/75 mm EPS / PU sandwich panel, all fixed and only need to expand and connect them together.
Floor	Steel frame + MGO board or fiber cement board + PVC floor, all finished installation in our workshop.
Window	Double glazed PVC window / aluminum alloy window Window screen is optional
Door	Aluminum alloy glass door / wooden door / PVC sliding door and steel door etc.
Bathroom	Shower, Toilet, Wash Basin, Towel Rack, Mirror, Paper box, pre-installed
Kitchen	cupboard “I” or “L” shape with washing basin, with white Quartz stone countertop, assemble onsite.
Electric system	Switch, socket, lamp, light, waterproof socked, distribution box etc. all pre-installed only need to connect onsite (Australia standard, American standard, French standard, Chinese standard, European standard etc.)
Max. Wind load	110 km/h
Earthquake	8 grades

Characteristic

Applications

Packing and transportation

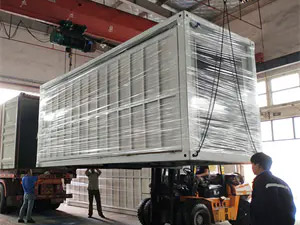

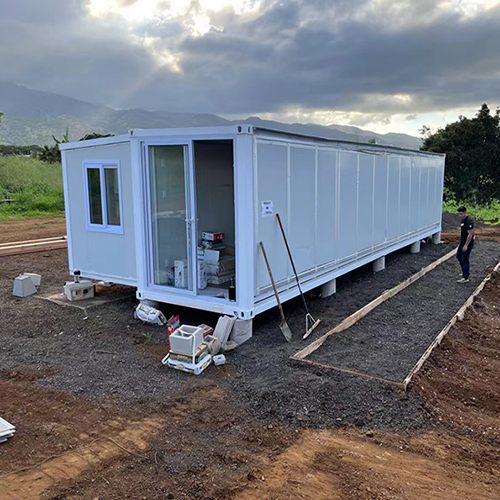

The expandable can be folded during transportation, which makes it cost saving. We can fold the two side parts into the main center part, make it a 20ft or 40ft SOC box, put other components inside the SOC box then load into shipping container. In this way, each SOC box is one unit of expandable, so you can find all components easily onsite. Or if any delay of the project, you can also put the SOC box in warehouse or in the site, there will be no mess up or damage, no accessory will get lost either.

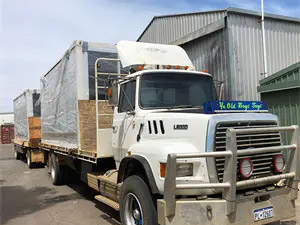

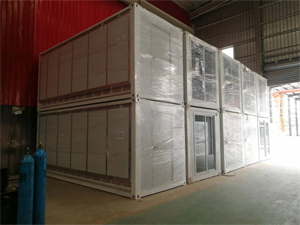

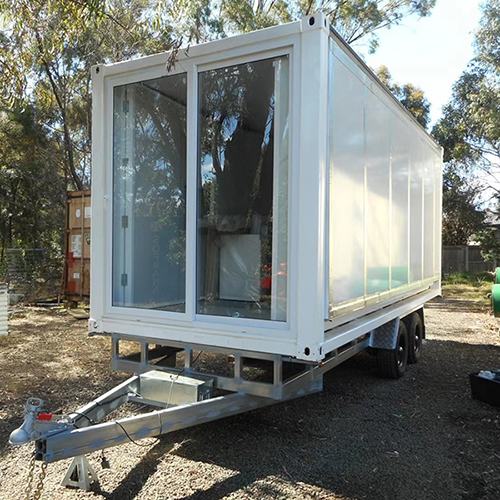

SOC packing of expandable container house	Loading: can lift and push into the shipping container directly. When arrives on the site, can be pulled out easily.	Towing of the expandable packages: the expandable can be lift and transported directly. There are container corner fittings which can be locked onto the truck to make sure the safety during transportation.

Related Projects

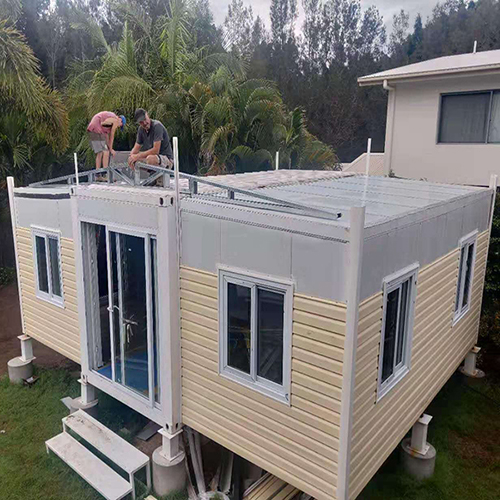

Project Name		40ft Expandable Container House
Finished Time		Year 2022
Project Place		AU
Building Area		1 unit
Project Description		40ft expandable container house can be loaded into one 40HQ for shipping. Can have 2~4 bedrooms different designs. EPS sandwich panel for wall and roof insulation, big aluminum framed doors and windows.

Project Name		Vocation House Portable
Finished Time		Year 2021
Project Place		NZ
Building Area		1 units
Project Description		40ft portable container house with balcony all around for vocation. No need any foundation no need any civil work, all prefabricated in CBC workshop. Also very easy to be assembled following the installation instructions.

Project Name		Low-cost Demountable Container House
Finished Time		Year 2019
Project Place		PNG
Building Area		2 units
Project Description		40ft three bedrooms design for low-cost housing project in PNG

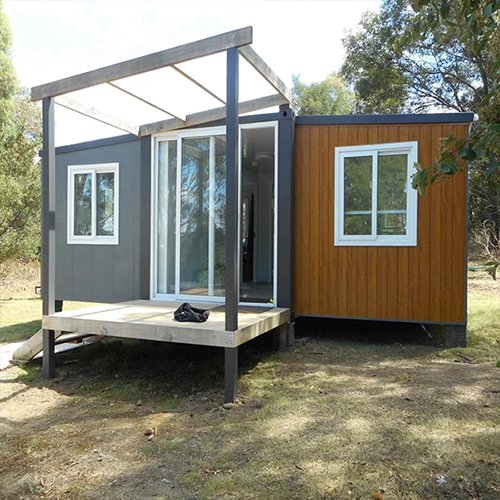

Project Name		Back Yard Portable Container House
Finished Time		Year 2020
Project Place		AU
Building Area		2 units
Project Description		20ft expandable container house for temporary use in back yard, for temporary office and living rooms

Project Name Portable Container House

Finished Time Year 2019

Project Place NZ

Building Area 20ft

Project Description 20ft expandable granny flat in back yard for temporary living

Project Name		Back Yard Granny Flat
Finished Time		Year 2019
Project Place		AU
Building Area		1 units
Project Description		20ft expandable container house for back yard granny flat, with extra PU wall cladding and extra pitch roof for better insulation and solid appearance

Project Name		20FT Expandable Container House
Finished Time		Year 2021
Project Place		AU
Building Area		20ft
Project Description		20FT expandable container house for temporary living in remote area.

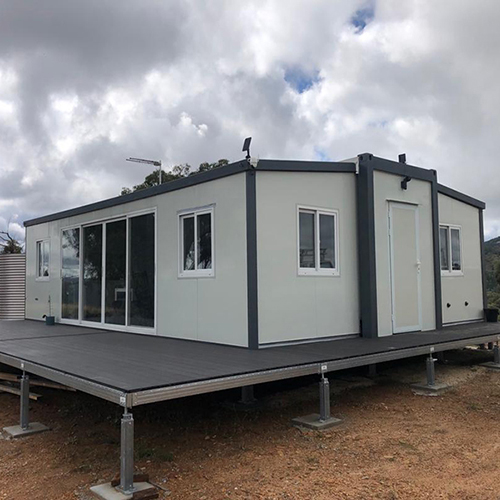

Project Name		AU Standard Expandable Container House
Finished Time		Year 2020
Project Place		AU
Building Area		20ft
Project Description		Standard 20ft expandable container house for temporary living. No need very solid foundation just flat and firm ground will be fit.

FACTORY TOUR

Packaging Production

Finding A One-Stop Solution Is Our Ultimate Goal!

CBC’s design and research activity applies BIM system and Autodesk Revit software. As China Wholesale Expandable Container House Suppliers and Expandable Container House Manufacturers.Based on relevant information and requirements of the project, we establish a building model to simulate the real information about the building through digital information simulation. what’s more, we can easily present details and 3D renderings of our company’s products to all clients.

Innovative Solutions

In Year 2007, we created a unique flatpack roof system Using injected PU foam as core material, which solved the problem of the balance between the tightness, the strength and the full prefabrication in the factory.

We are also the first one to use FrameCAD system to design and manufacture the light gauge steel villa in China.

We have more than 100 patents for different parts or technology innovations, such as the wall panel clips, the skirting, the corner parts…

Product Knowledge

An expandable container house, also known as a modular container house, is a type of dwelling that utilizes shipping containers as its primary building blocks. These container houses are designed to be easily transported, assembled, and expanded to provide flexible living spaces. The concept of using shipping containers for housing has gained popularity in recent years due to their cost-effectiveness, durability, and sustainability.
The main idea behind an expandable container house is that it can be expanded or contracted based on the specific needs of the occupants. This flexibility allows for easy customization and adaptation to different living situations. The expansion feature typically involves the use of additional container modules that can be added to the existing structure, creating more living space as needed.
Here are some key features and benefits of expandable container houses:
Mobility: Expandable container houses are designed to be transportable, making them suitable for temporary or portable housing solutions. They can be easily moved from one location to another, allowing occupants to take their homes with them if they need to relocate.
Cost-effectiveness: Using shipping containers as the main building material for a house can be more affordable compared to traditional construction methods. The containers are readily available, and their standardized dimensions make it easier and cheaper to transport and stack them.
Quick assembly: Expandable container houses are prefabricated structures, meaning that they are built off-site in a factory and then transported to the desired location for assembly. This construction method significantly reduces the construction time, allowing for a faster move-in process.
Eco-friendly: By repurposing shipping containers, expandable container houses promote recycling and minimize waste. Additionally, some designs incorporate sustainable features such as solar panels, rainwater harvesting systems, and energy-efficient insulation, reducing the environmental impact of the dwelling.
Versatility: Expandable container houses can be designed to suit various purposes, including residential homes, offices, classrooms, emergency shelters, and more. The modular nature of the containers allows for easy customization and adaptation to different needs and requirements.
